專用絲錐

材料：高速鋼(6542 9341)
用于加工絲套底孔的專用絲錐，可機用也可手用。
又分為：直槽、螺旋槽、擠壓絲錐。
The special tap
Material: the high-speed steel (6542 9341).
It is used to work the thread insert’ s bottom hole which is used mechanically and manually .it is divided into three categories . the seraigh channel ,the spiral scroll and the squeezing tap.

套筒安裝扳手

材料：≤M8 LY12   ≥M10 45#鋼
用于螺套的安裝，其基本原理是使螺套通過扳手前一段引導螺紋，迫使外徑收縮，以便順利裝入底孔，使用套筒安裝扳手安裝，可以提
高效率，同時減少報廢率。
The manual wrench
Material:≤M8LY12   ≥M10 45#steel
It is used for the installment of the thread insert .It is the basic principle that the thread insert is guided firstly to force the outside diameter shrinkage to pack it into the bottom hole smoothly.The efficiently is enhanced and the scrap rate is reduced through using the wrench.

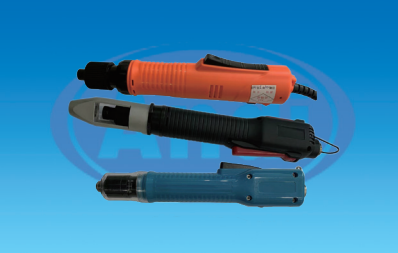

電動安裝扳手

使用范圍：M3~M12
用于大批量螺套的安裝或適用于裝配生產線。
The electric wrench
The using range :M3~M12
It is used in the assemblage of the multitudinous thread insert or used in the assembling the production.

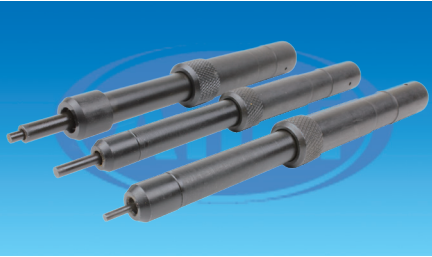

安裝柄沖斷器

材料：40Cr
用于去除安裝在通孔內的安裝柄，將沖斷器對準安裝柄，用200g左右的榔頭猛擊一下即可除去，使其形成通孔。
The tail of break-off tool
Material:40cr
It is used in breaking off the thread insert tail of the through hole, the break-off tool is aligned to the tail and breaks it off with a 200g hammer punching to form it into the throng hole.

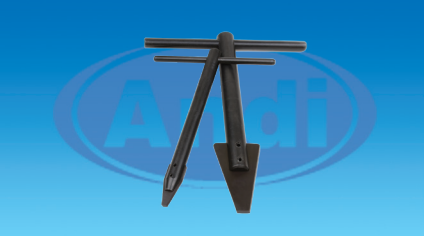

卸套器

材料：高速鋼
用于取出安裝過程中出現問題的螺套，用榔頭猛擊一下，加力按下手柄，反方向旋轉即可取出，再重新安裝螺套。
Extractor
Material:the high-speed steel
Enable users to extract a thread insert fitted with defect. Thanks to it is triangular shape. the extractor can be locked into the thread insert, by rotating the tool while keeping a vertical thrust, the thread insert can be unscrewed.

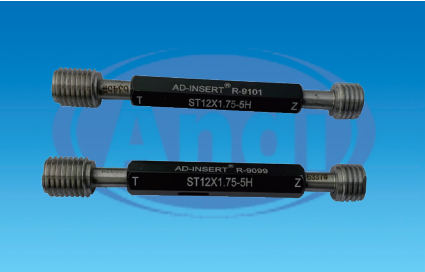

底孔塞規

材料：Cr Mn
用于檢驗鋼絲螺套安裝前的底孔尺寸，對工件精度要求較高或鑒別絲錐是否磨損時使用。
Plug Gauge
Material:Cr Mn
It enables users to check the conformity of the tapping before insertion of thread inserts for the work piece for having high accuracy.

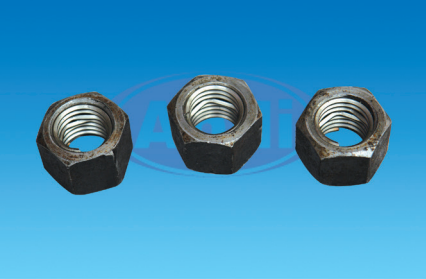

自鎖型螺母

材料：35#鋼
將鎖緊型鋼絲螺套裝入螺母中，形成有鎖緊功能的螺孔，能有效防止螺母在機器設備振動時松動，還能反復拆裝使用。
The self-locking nut
Material:35# steel
It makes the nut impossible to unscrew when the machine is vibrating, after the locking thread insert is stetted into the nut. It is capable of removing and using time after time

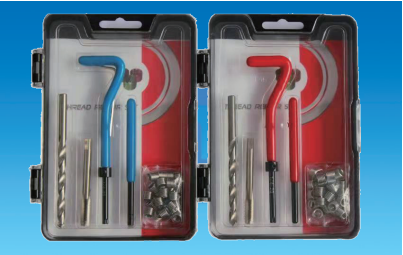

維修螺孔工具箱

使用范圍：M2-M64
用于無動力的任何場所，是現場維修螺孔的好幫手。
Repair tool kit
Range:M3-M64
Repair kits provide all necessary tools thread tapping or to quickly and economically repair them.
